Watering specifications (valve opening/closing type)
Labor-saving moisture adjustment work
Super mixer
(soil mixer)

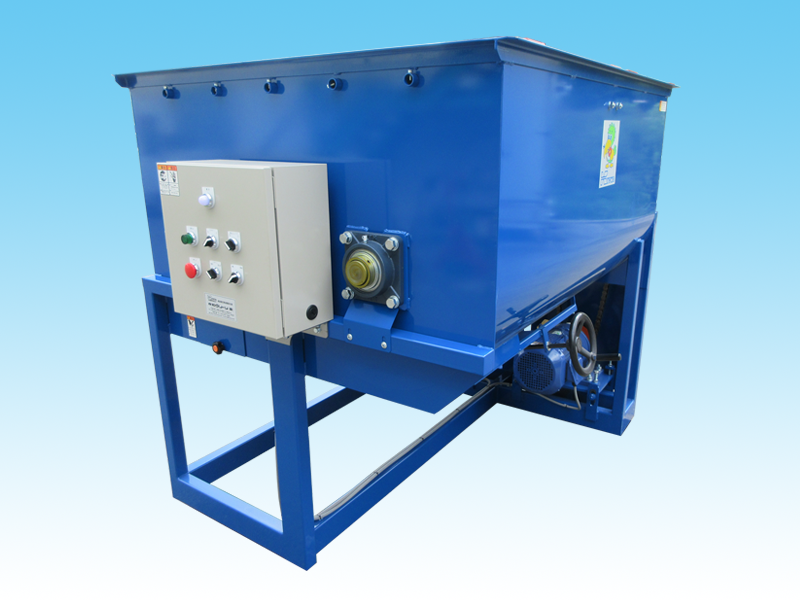

KYM-A type
This mixer is suitable for producers who use compacted soil or soil with a heavy specific gravity.
It is mainly used by landscape gardeners, ground cover producers, and vegetable seedling producers.
Introduction video of KYM-A type (Japanese)
KYM-A1000 type trial run video (Japanese)

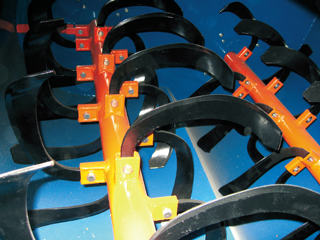

KYM-A1000 Inside the machine
specification
| Model name | capacity（L） | Number of blades | Dimensions (width x depth x height)㎜ | mixing time | Capacitance |
|---|---|---|---|---|---|
| KYM-A1000 | 1,000 | 48 | 1,960×1,392×1,520 | Approximately 3 minutes | Three phase power supply 200V 7.5KW |
| KYM-A2000 | 2,000 | 62 | 2,425×1,700×1,630 | Approximately 3 minutes | Three phase power supply 200V 11.0KW |
| KYM-A3000 | 3,000 | 74 | 2,845×1,910×1,900 | Approximately 3 minutes | Three phase power supply 200V 15.0KW |
standard equipment
○1-axis/2-axis independent discharge function……Function to protect the composition of completed soil
○Comes with 1 backup power source
○Comes with safety device to prevent failure due to motor overload
option

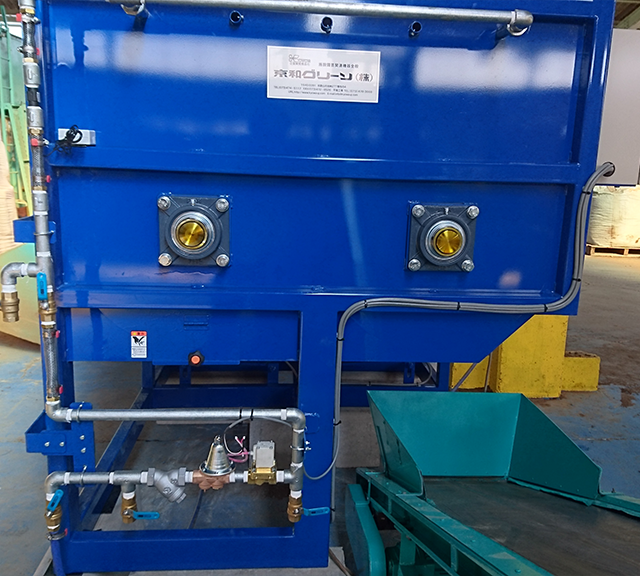

Watering specifications (timer automatic opening/closing type)
Additionally, if you use a timer to automatically stop the water, anyone can water the required amount at the touch of a button.
Watering specifications (with liquid fertilizer mixer)
Ideal for mixing surfactants etc.
irrigation meter
You can check the amount of water sprinkled with an integrated flow meter.
Automatic discharge control panel linked to belt conveyor
Work efficiency is increased by interlocking control with the discharge conveyor and potting machine.
U-shaped fence
A fence to prevent soil leakage for soil injection.
steps
Convenient when adding materials manually.
Full detection control sensor
When directly connected to a potting machine, it can detect the amount of soil removed and automatically control the discharge.

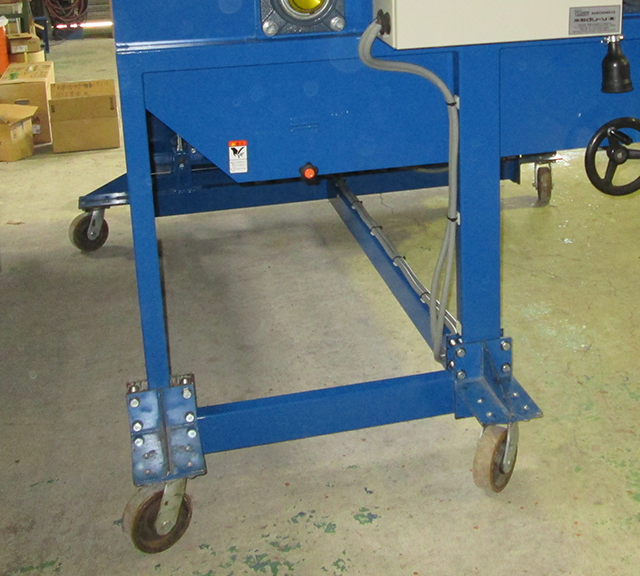

Wheel
Attach wheels to the frame to move it.
