Shower
irrigation equipment

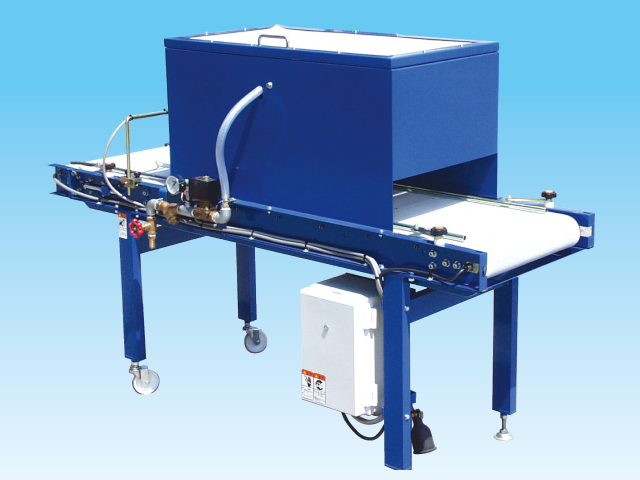

KYC-15S

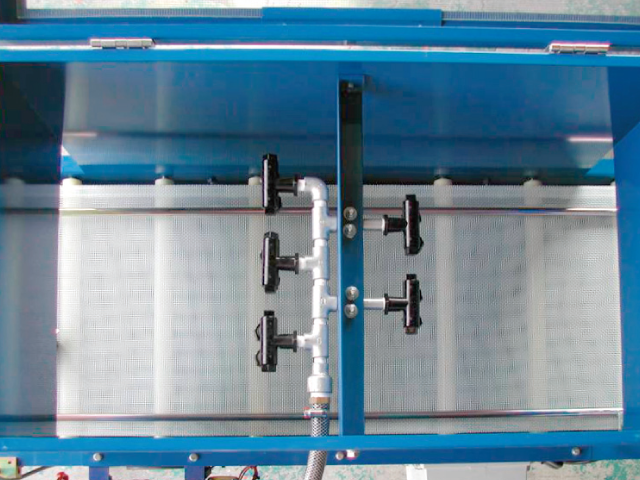

This is a machine that performs irrigation after covering with soil or after placing bed soil in a plug tray. The mist irrigation type allows for uniform irrigation.
| Model name | KYC-15S |
|---|---|
| ability | Variable speed ~350 trays/hour |
| conveyor belt | net belt |
| power supply | Three phase 200V 0.09KW |
2kg/hour 11.4 L/min
3kg/hour 13.2 L/min
You can easily change the irrigation angle.
Since it is a shower type, you can get plenty of water.

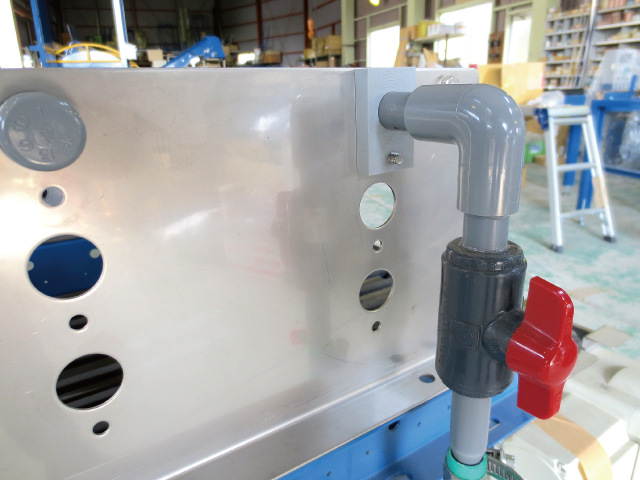

Each PVC pipe has a cock, so the amount of water can be adjusted.

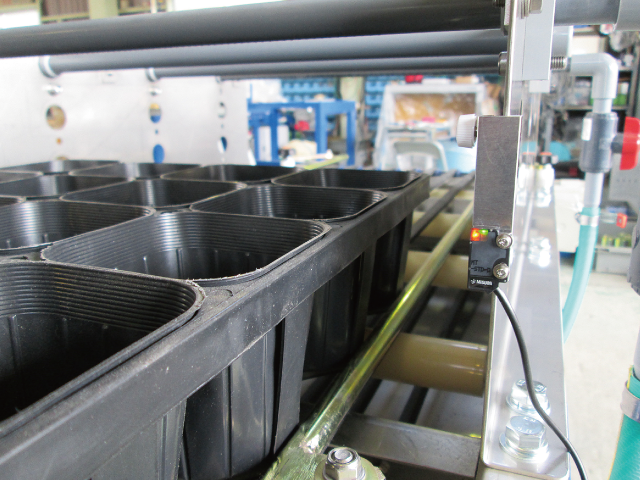

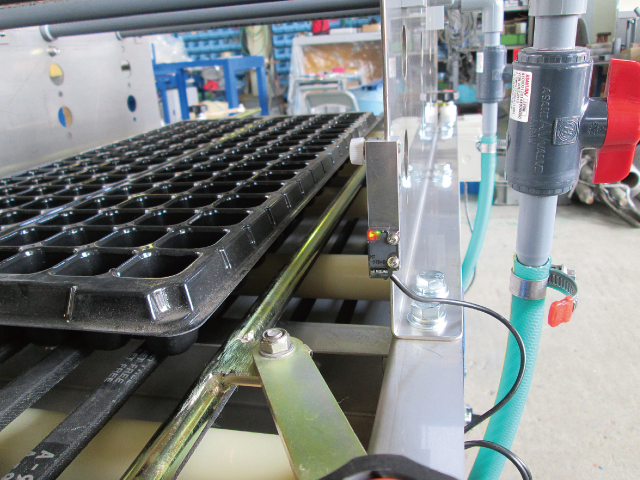

※Tray detection sensor is optional.

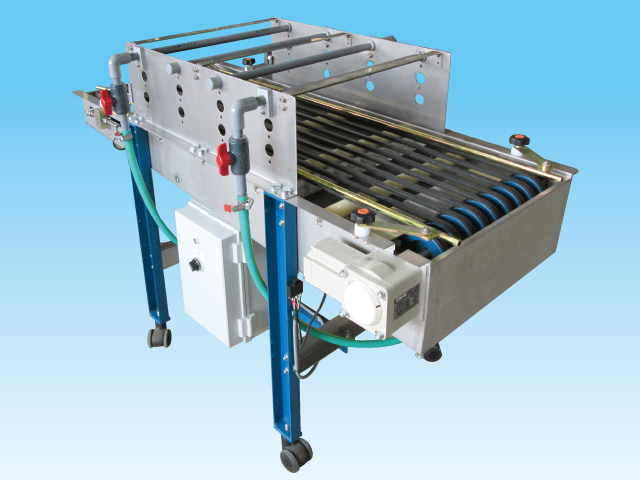

KYC-12S
| Model name | KYC-12S |
|---|---|
| ability Irrigation amount |
0~8.6m/min 60Hz Irrigation amount: Approximately 700cc/tray |
| water nozzle | φ18㎜ 4 PVC pipes （79 locations x φ0.5mm hole x 4） |
| length | 1,200㎜ |
| width | 670㎜ |
| height | 845㎜ |
| weight | 50㎏ |
| power supply | Three phase 200V 0.04KW |
 |
 |
 |
●The shower case is made of stainless steel, so it is highly durable.
In-soil irrigation equipment
In-soil irrigation equipment is a equipment that allows water to quickly penetrate into the soil of a pot.

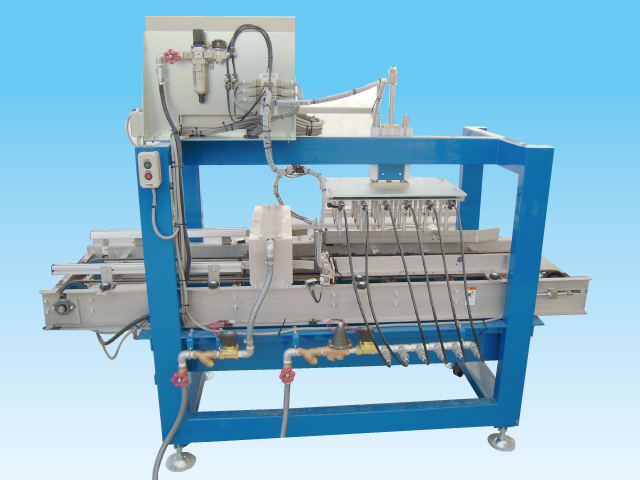

| Model name | KYC-SD |
|---|---|
| ability | 300 trays/hour |
| power supply | Three phase 200V 0.09KW |
effect
●Water quickly permeates into the soil in the pot. When planting vegetable seedlings, a potting soil that has plenty of moisture is required. Therefore, when watering from the surface, water should be divided into several times over time. With this device, it will penetrate into the pot in just 1 to 2 minutes.
●Can be planted vertically. To improve the quality of vegetable seedlings, it is important to plant them vertically. Planting can be done vertically by drilling holes in soil that has permeated with water using a compaction device.
Water permeates into the pot on the connecting roller conveyor after soil irrigation until it is transferred to the suppression device (transfer takes approximately 2 minutes). After being quelled, it is moved to a bench in an assembly line where it is transplanted on a conveyor.

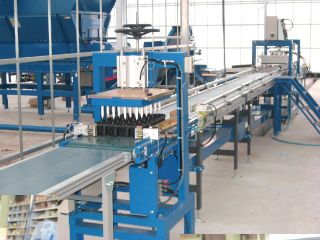

〈Construction example〉
