vibrator
Used when filling seeding trays. It has the effect of making the density of the filled soil uniform.

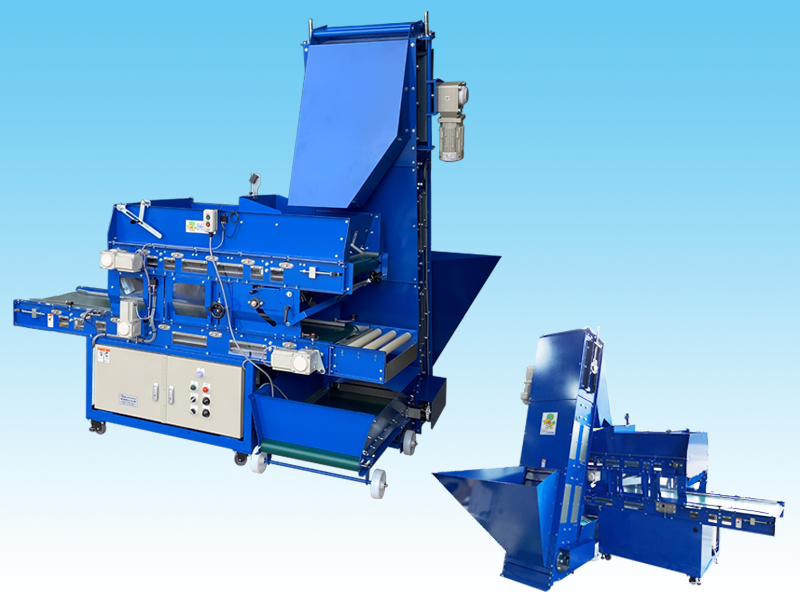

potting machine
（soil filling machine）
KYP-GS2
This machine is equipped with a triangular hopper on the soil filling conveyor and elevator (with collection conveyor).
specification
| Model name | capacity（L） | Compatible sizes | Dimensions (width x depth x height)㎜ |
Capacitance |
|---|---|---|---|---|
| KYP-GS1 | 180 | Up to 95mm in height | 2466×1785×2190 | Three phase power supply 200V 0.62 KW |
standard equipment
○Tray conveyor speed controller
○Upper soil conveyor speed controller
○rotating brush
○tray sensing phototube sensor
○Tray conveyor reversal function
○elevator bucket stainless steel
option
compaction roller
Used when filling seeding trays. Improve the effect of vibrator.
Anti-lifting plate
Seed tray for mechanical transplantation to prevent getting caught in rotating brushes. By installing it, stable operation will be possible.
transfer drive roller
By using a drive type transfer roller at the exit, the tray conveyance speed will not drop and it will be smooth.
Heightening modification
Tray entry height can be changed. Although it can accommodate tall trays, it will not be able to accommodate seeding trays.
Elevator chain stainless steel specification
Improves rust prevention effect.
Potting machine common options
outlet side brush
Use a brush to remove soil that has accumulated around the edge of the tray.
outlet air brush
Use an airbrush to remove soil that has accumulated around the edge of the tray.
